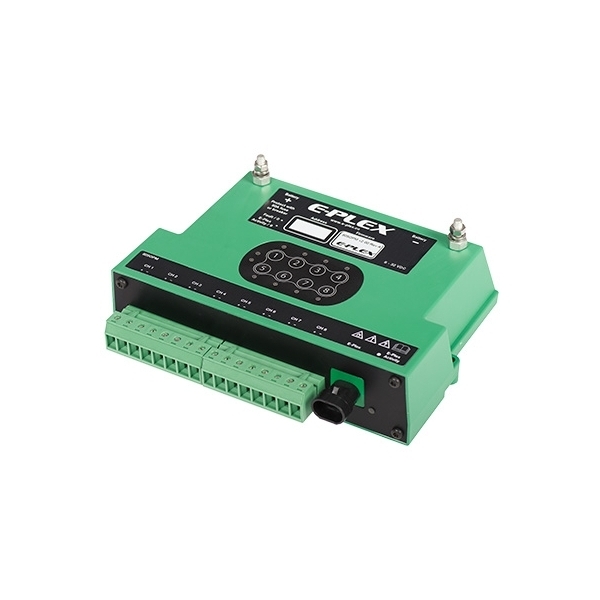

E-Plex 805OPM Octal Power Module

The E-Plex 805OPM is an eight channel DC power distribution module capable of handling loads of up to 15 A per channel or 50 A total. The eight channels can be utilised as either inputs, outputs, or a combination of both. Output channels may be paired in order to handle larger amperage loads. The 805OPM incorporates thermal, short circuit, and programmable overload protection in order to safeguard the module against incorrect wiring or load faults. Manual mode capabilities allow backup operation of the device loads in the event that the E-Plex system goes offline. In addition, the 805OPM design allows for the ability to utilise any combination of channels as dimmer circuits, providing a flexible solution for lighting control.

Key Features

  • 8 channels with outputs capable of up to 15 amps each (no more than 50 amps continuously for the module)
  • Pairs of channels may be configured to operate in parallel
  • PWM dimming capability on all channels
  • Input capability on all channels
  • Reverse battery protected
  • Status LEDs for each channel
  • Thermal, short circuit, and programmable overload protection
  • Local manual override capabilities
  • Designed for motor and high inrush current loads
  • E-Plex LEN value 2

Design Specifications

  • Transient voltage suppression: EN6100-6-1
  • PCB characteristics: UL 94V-0
  • Power distribution: UL 1077 compliant (except high-voltage dielectric test)
  • Load dump tested to ISO 16750-2
