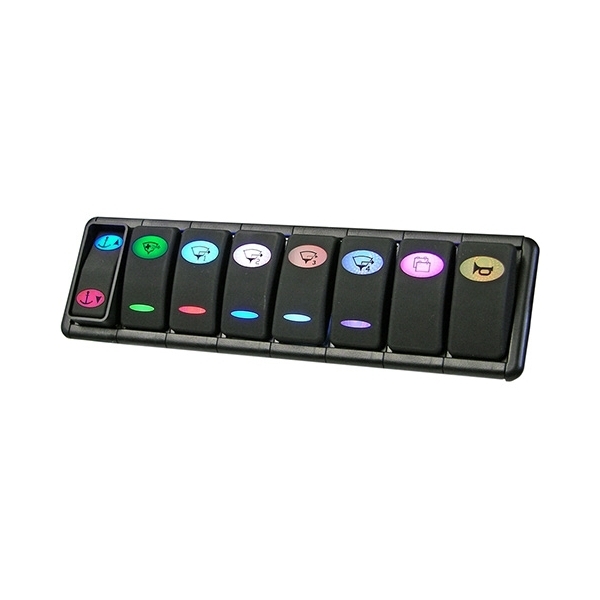

E-Plex 428RSP LED Rocker Switch Panel

The E-Plex 428RSP is a programmable, multi-color LED, rocker switch panel designed to operate within an E-Plex system. This innovative new product incorporates independently controlled LED’s, allowing custom-configured color selection on a per LED basis. Via E-Plex software, each LED is capable of being configured to produce up to 64 unique colors without the need for special ordering or assembly. The 428RSP utilizes optical interrupters to create a switch output, which means there are no electrical contacts within the switch. The 428RSP provides interchangeable cams, including 1 & 2 position momentary, 2 & 3 position stationary and 2 position momentary / 1 position stationary switches. These cams are designed on a simple snap-in platform that allows for easy and inexpensive assemblies and modifications. In addition, switch banks greater than eight positions can be combined by dovetailing multiple units together.

Key Features

  • LED color configuration, choose from a 64-color palette via E-Logic
  • Each LED can be configured with up to four unique system-status colors
  • Interchangeable cams to create different switch modes
  • Laser-etched actuators (customer-specified legends)
  • Rocker switch uses optical interrupters (no contacts)
  • Panel assembly is weather resistant and the board is conformal coated. External use requires additional physical protection to suit application
  • LEN value 17 to 25

Design Specifications

  • Shock: Mil Std 202 Method 213 test condition 1
  • Vibration: Tested to Lloyds Registered approval vibration test 2
  • Ingress Protection: IP40
  • PCB characteristics: UL94V-0
  • UVB certification: UVB 400 hours
