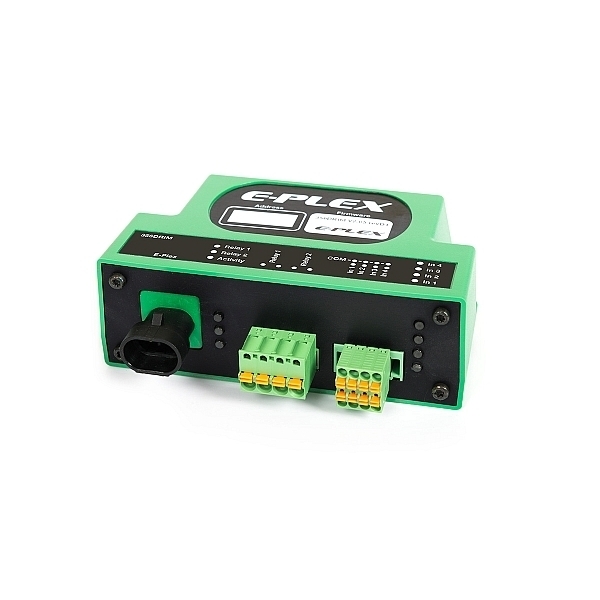

E-Plex 356DRIM Dual Relay Input Module

The E-Plex 356DRIM is a flexible input and output module consisting of 2 normally open relay outputs and 4 digital inputs. Each digital input is configurable as either active high or active low through the E-Logic software.For output relays, status LEDs are red when the relay is closed. For digital inputs, status LEDs indicate green for active high input, red for active low input.

Key Features

  • 2 relay outputs
  • 4 inputs, configurable as active high or low
  • Inputs isolated from E-Plex ground
  • Output relay contacts rated for 10 amps AC or 5 amps D
  • Status LEDs for inputs and outputs
  • Ideal for controlling generators
  • LEN value 23 @12V

Design Specifications

  • PCB characteristics: UL94V-0
  • Operating Temperature: -20°C to 60°C
  • Storage Temperature: -40°C to 85°C
  • Operating Humidity: 0% to 95% (non-condensing)
  • Weight: 188g
