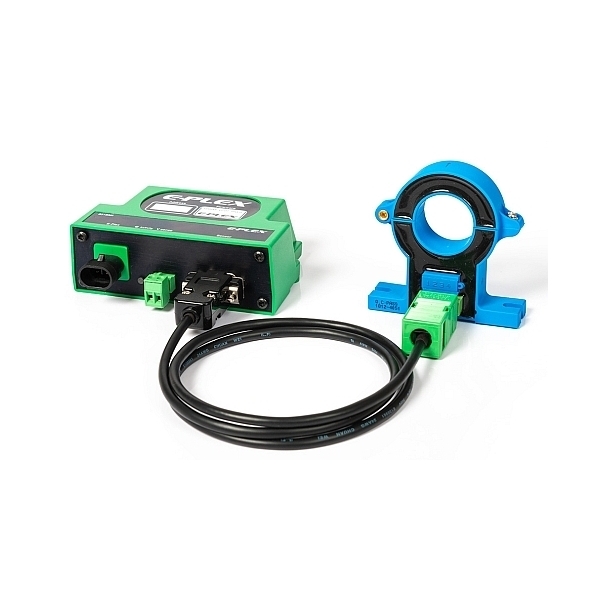

E-Plex 331BMI Inductive Battery Monitor

The E-Plex 331BMI battery monitor is an inductive monitor that senses both current and voltage. The battery monitor is bi-polar in that the E-Plex network reveals if the battery is charging or discharging. Put the positive battery cable through the centre of E-Plex battery monitor sensor, the sensor can be either secured to the cable or mounted on a bulkhead. Orientate the sensor with the arrow away from the battery for proper current direction indication by the E-Plex system. The 331BMI has a reference voltage input for applications that have the battery negative terminal in common with the E-Plex return.

Key Features

  • +/- 300 amp monitor
  • “Engine cranking” amps capable
  • Charging and load current sensing to and from battery
  • Voltage output sensing from battery
  • Independent sensor and interface
  • Split core sensor for ease of maintenance
  • Internal diameter 30mm
  • LEN value 3
  • Standard EP3 connection
